T2063TLN0000

Product introduction：

Round Ductile Iron Manhole Cover EN124 A15 B125 C250 D400 E600 F900 Product name：Round Ductile

Product model：

weight：

Process:

Specifications：

texture of material：



Click to send email to us

Click Share with your friends：

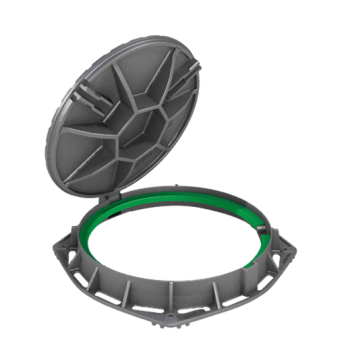

Round Ductile Iron Manhole Cover EN124 A15 B125 C250 D400 E600 F900

 Product name：Round Ductile Iron Manhole Cover

 Material   ：  Ductile iron

 Product Color：black

 Product characteristics：Good toughness、 Corrosion resistance、 Strong pressure resistance

 Product size：Reference Size Table（Customizable）

 Product model：A15 B125 C250 D400 E600 F900

 Scope of application：Municipal roads、Green belt、 Sidewalk、District、Parking lot、 Main roads、 Highway and so on

 Ductile iron manhole cover

1) Product information:

Manhole Covers are manufactured for construction and public use. Manhole Covers shall be smooth and free from sand holes, blow holes, distortion or any other defects

2) Material

a) Ductile Iron GGG500-7 & 400-12

b) Grey Iron GG20

3) Designs .

a) EN124 A15, B125, C250, D400, E600 and F900

b) A60005 for casting design

c) Major standards designs available

d) As per customers' drawings or samples

4) Process

a) Automatic Machinery Production Line

b) Molding boards

5) Coating

a) Cold applied black bitumen

b) Without coating

c) Coating as per customers' requirement

6) Different accessories are available

Class Apply to Bearing Remarks

EN124-A15 Areas where only passed by Pedestrians and Bicycles. 15KN

EN124-B125 Footways, parking lot or similar areas. 125KN HOT-SELLING

EN124-C250 The edge combinative area of vehicle road and the pavement. 250KN

EN124-D400 Vehicle area and urban arterial road. 400KN HOT-SELLING

EN124-E600 Shipping port and parking apron area. 600KN

EN124-F900 Airplane taxiway and huge dock. 900KN
